GAINER皮帶輪量規
GAINER｜PULLEY GAUGE 鋁合金三角帶輪量規,鑑定皮帶輪的加工精密度與檢查皮帶輪的磨耗程度.歐規SPZ, SPA, SPB, SPC 美規3V, 5V, 8V, A, B, C, D, E.
代碼 tool-04
人氣 3175
型錄下載我要詢問

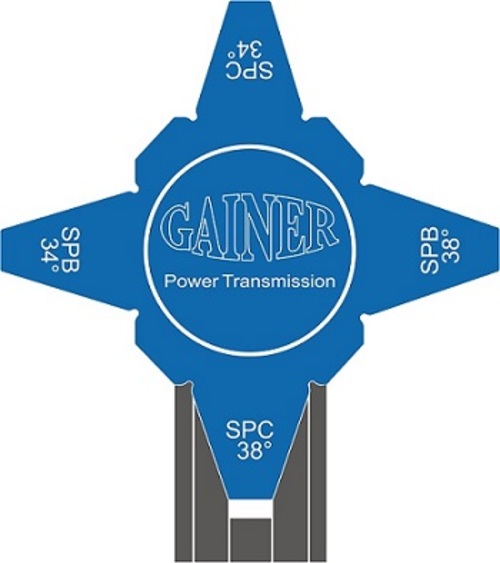

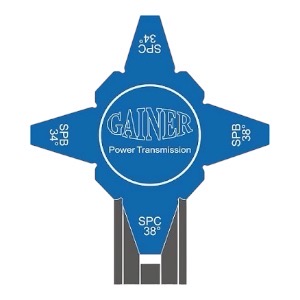

PULLEY GAUGE 鋁合金三角帶輪量規
鑑定皮帶輪的加工精密度與檢查皮帶輪的磨耗程度.歐規SPZ, SPA, SPB, SPC, 美規3V, 5V, 8V, A, B, C, D, E
以皮帶輪直徑選擇適合的皮帶輪量規，來檢測皮帶溝槽，如皮帶輪溝槽角度磨損大於標準值，
請速更換新的皮帶輪，以確保運轉效率及皮帶與培林的壽命。
| Standard pulleys - ISO4183 Dimensions in millimetres |
||
| Belt | P.D. Range | Groove Angle |
| SPZ | ≦ 80 | 34° |
| SPZ | ＞80 | 38° |
| SPA | ≦ 118 | 34° |
| SPA | ＞118 | 38° |
| SPB | ≦ 190 | 34° |
| SPB | ＞190 | 38° |
| SPC | ≦ 315 | 34° |
| SPC | ＞315 | 38° |
| Standard Sheaves - RMA - IP22 Dimensions in inches |
||
| Belt | O.D. Range | Groove Angle |
| 3V | Under 3.5 | 36° |
| 3V | 3.5~6 | 48° |
| 3V | 6.01~12 | 40° |
| 3V | Over 12 | 42° |
| 5V | Under 10 | 38° |
| 5V | 10~16 | 40° |
| 5V | Over 16 | 42° |
| 8V | Under 16 | 38° |
| 8V | 16~22.4 | 40° |
| 8V | Over 22.4 | 42° |
| Standard Sheaves - RMA - IP22 Dimensions in inches |
||
| Belt | P.D. Range | Groove Angle |
| A | 2.4~2.99 | 32° |
| A | 3.0~5.4 | 34° |
| A | Over 5.4 | 38° |
| B | 3.6~4.59 | 32° |
| B | 4.6~7.0 | 34° |
| B | Over 7.0 | 38° |
| C | 7.0~7.99 | 34° |
| C | 8.0~12.0 | 36° |
| C | Over 12.0 | 38° |
| D | 12.0~12.99 | 34° |
| D | 13.0~17.0 | 36° |
| D | Over 17.0 | 38° |
| E | 18.0~24.0 | 36° |
| E | Over 24.0 | 38° |
