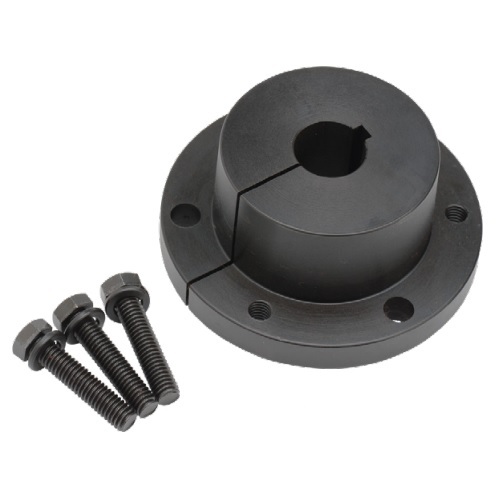

馬丁傳動 QD錐套安裝說明

Bushing Installation Torque

When a wrench or length of pipe is used to increase leverage in tightening bushing screws, it is imperative to adhere to the wrench torque values given in the chart below.

This adherence is important – because, in mounting the bushing, the tightening force of the screw is multiplied many times by the wedging action of the tapered surface. This action compresses the bushing for a snug fit on the shaft. The bushing screws should always be tightened alternately and progressively.


正面安裝與反面安裝

光孔對準螺孔可以正反面安裝

螺釘頂住皮帶輪緣旋出
